Wire Rod

Wire Rod
ACERINOX is known worldwide as the one of the most competitive group in the world in stainless steel manufacturing. From its constitution, it has carried out a continuous program of investments, with development of own technological innovations that, in some cases, has constituted a true landmark in the technology of stainless steel.

Hot rolled product, in coils or cut.


Description

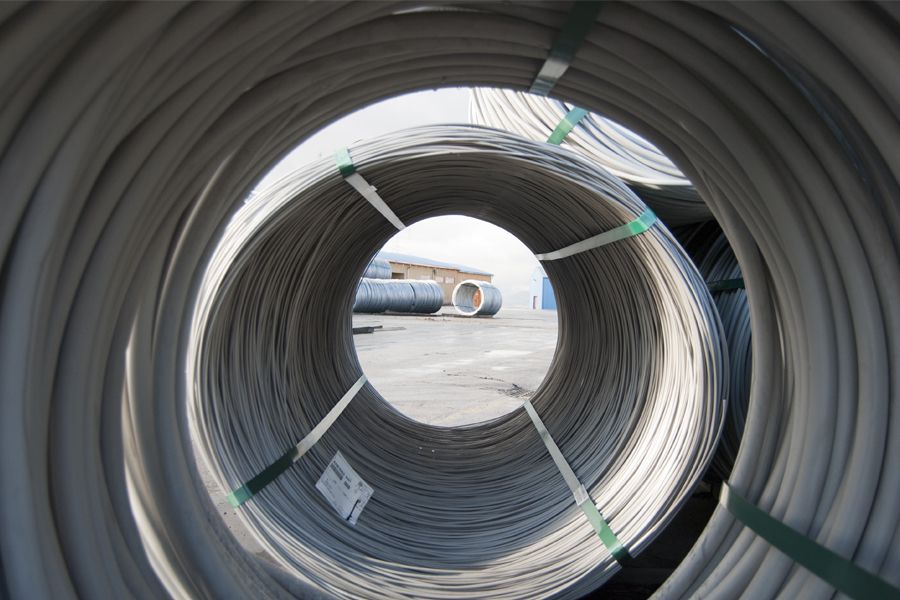

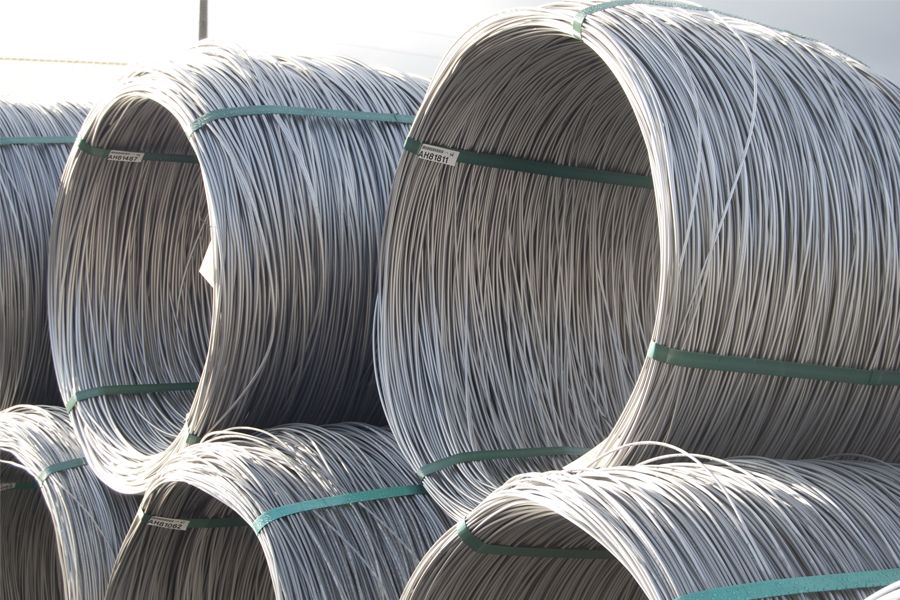

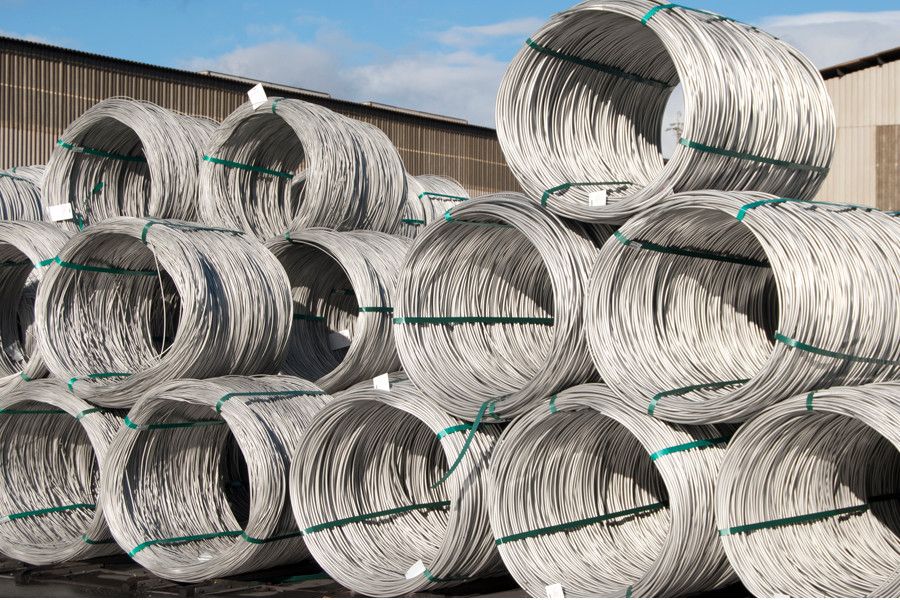

Wire rod in coil

Finish

Description

Finish
according to
10088:2005

10

Annealed and pickled wire rod

1D

12

Annealed and pickled wire rod
with ecological coating (pre-coat)

1D
18

Pickled wire rod (D-cooled)

-



Cut and straightened wire rod

Finish

Description

Finish according to
10088:2005

20 Annealed, pickled, straightened and cut round bar 1D

24*

Annealed, pickled, straightened, cut and centerless ground round bar -
25 Annealed, straightened, cut and black round bar 1C
29 Direct annealed, straightened, cut and black round bar  1U

24*: on request



Delivery / Lenght / Tolerance

Ø (mm)

Tolerance (mm)

Ovality (mm)

5.50-10.00 +0.15 0.23
10.50-16.00 +0.18 0.25
16.50-23.00 +0.20 0.30
24.00-27.00 +0.35 0.56
28.00-41.50 +0.60 0.96
  • Coil weight: 900-2200 kg (lower weight according to customer specifications)
  • Coil diameter : interior (900-1000 mm) exterior (1200-1400 mm)
  • Coil height: 1700-2200 mm approx. for 2000-2200 kg coils



Cut and straightened wire rod

Ø (mm)

Tolerance (mm)

Ovality (mm)

Ø de 5.0 a 15.5
(cada 0.5 mm)
+0.08 0.26
 16-16.50-17-17.50-18
19-20-20.50-21-22
+0.20 0.30
 23 +0.23 0.34
24-24.50-25-25.50
26-26.50-27
+0.35 0.56
28-29-29.50-31-31.50-33
34.50-36-37.50-39.50-41.50
+0.60 0.96
  • Length: 3000-7000 mm
  • Length tolerance: +50 mm
  • Straightness: 4 mm/m
  • Short bars: 5% allowed



Mechanical Properties (For guidance only)

Finish

Rm
(MPa)

Rp0.2%
(MPa)

Rp1.0%
(MPa)

A5%

10/12 450-690 >200 >250 >45
18 550-800 >300 >350 >20
20/25/29 480-750 >250 >300 >30



Important

Data subject to changes according to international standards and working practices.

Other grades on request: customer.service@acerinox.com
