Wire

Wire
ACERINOX is known worldwide as the one of the most competitive group in the world in stainless steel manufacturing. From its constitution, it has carried out a continuous program of investments, with development of own technological innovations that, in some cases, has constituted a true landmark in the technology of stainless steel.

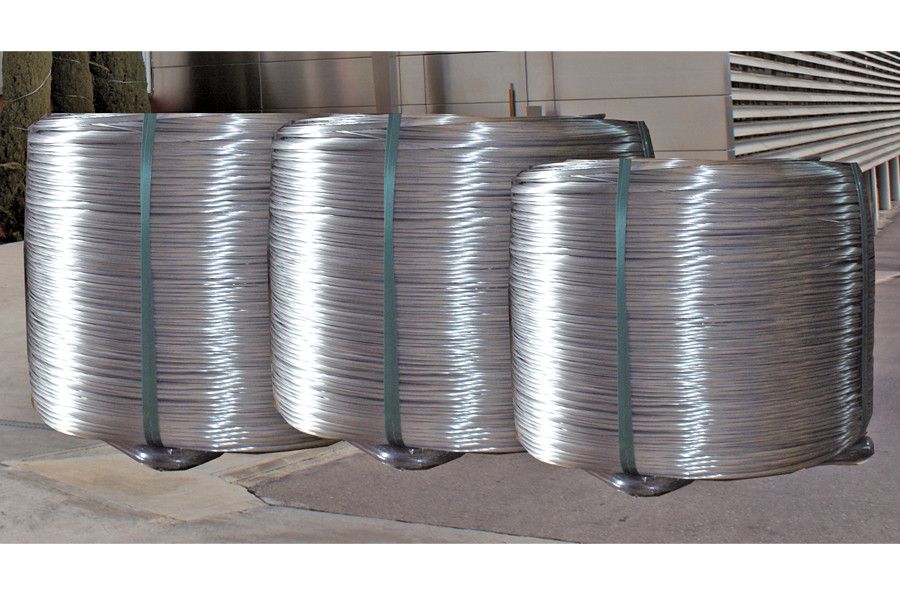

The stainless steel wire has a wide range of general applications.


Clamps

Characteristics
  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grades: 1.4301-1.4404
  • Packaging: coils, trancane, roseta coil
  • Mechanical properties: 700/800 N/mm2
  • Finish: bright without degreasing



Welding Wire, MIG

Characteristics

  • Diameter (mm): 0.80, 1.00, 1.20
  • Diameter tolerance (mm): -0.020
  • Stainless steel grades: 1.4370-1.4430
  • Packaging: metallic and plastic reels, coils, drums
  • Mechanical properties: 1100/1600 N/mm2
  • Finish: bright



Redrawing Wire

Characteristics

  • Diameter (mm): 0.80, 0.90, 1.00, 1.20
  • Diameter tolerance (mm): +0.020
  • Stainless steel grades: 1.4307-1.4306-1.4303 1.4404
  • Embalajes: drums
  • Mechanical properties: annealed
  • Finish: dull annealed



Anchorage, Fastenings

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grades: 1.4301-1.4401-1.4482-1.4362-1.4462
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties:
        650/750 N/mm2 = annealed
        800/900 N/mm2 = hardened
  • Finish: annealed dull and salted hardened bright

Anchorage for Building

Characteristics
  • Diameter (mm): 2.92, 3.92
  • Diameter tolerance (mm): +0/-0.020
  • Stainless steel grades: 1.4301-1.4401-1.4362-1.4462-1.4482
  • Packaging: coils, roseta coils
  • Mechanical properties: 650/750 N/mm2
  • Finish: bright without degreasing



Anchorage for Exhaust Systems

Characteristics
  • Diameter (mm): 8.00, 10.00
  • Diameter tolerance (mm): h-11
  • Stainless steel grades: 1.4307-1.4567
  • Packaging: coils, trancane
  • Mechanical properties: 700/750 N/mm2
  • Finish: bright and degreased



Cable Trays

Characteristics
  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4301-1.4401-1.4362 1.4462-1.4482
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 70/80, 80/90 N/mm2
  • Finish: bright and degreased



Ball Bearings

Characteristics
  • Diameter (mm): según pieza
  • Diameter tolerance (mm): +0.020
  • Stainless steel grade: 1.4307-1.4404
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties: 650/750 N/mm2
  • Finish: bright without degreasing



Ropes

Characteristics
  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): +0.020
  • Stainless steel grade: 1.4301-1.4401-1.4362-1.4462
  • Packaging: metallic and wooden coils, customer's coils
  • Mechanical properties: 1400/1600, 1600/1800 N/mm2
  • Finish: bright / dull



Chains

Characteristics
  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4307-1.4404
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 700/800 N/mm2
  • Finish: bright and degreased



Conveyor Belts

Characteristics

Spiral
  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grades: 1.4301-1.4401-1.4845-1.4841
  • Packaging: coils, roseta coils
  • Mechanical properties: annealed
  • Finish: bright/annealed dull

Axe

  • Diameter (mm): depending on the piece
  • Diamter tolerance: h-11
  • Stainless steel grades: 1.4301-1.4401-1.4845-1.4841
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties: 800/900, 900/1000 N/mm2
  • Finish: degreased bright/dull



Nails

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): -0.020 mm
  • Stainless steel grade: 1.4307-1.4404
  • Packaging: coil, trancane, roseta coil
  • Mechanical properties: 800/950 N/mm2
  • Finish: dull and soap coated



J Nails

Characteristics

  • Diameter (mm): 2.67
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4301
  • Packaging: coils, roseta coils
  • Mechanical properties: 800/900 N/mm2
  • Finish: bright without degreasing



Rivets

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): -0.020 mm
  • Stainless steel grade: 1.4301-1.4307-1.4404
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties: 1100/1400 N/mm2
  • Finish: coated dull



Free Cutting (Machining)

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-9
  • Stainless steel grade: 1.4305
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties: 700/850 N/mm2
  • Finish: bright and degreased



Pin Hinge

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): +0/-0.020
  • Stainless steel grade: 1.4567
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 550/650 N/mm2
  • Finish: bright without degreasing



Electropolishing, Tableware

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4301-1.4401-1.4362 1.4462-1.4482
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 700/800-800/900-900/1000 N/mm2
  • Finish: bright and degreased



Filters

Characteristics

Profile

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): +0.020
  • Stainless steel grade: 1.4307-1.4404-1.4301-1.4401
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: annealed
  • Finish: dull

Round

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-9
  • Stainless steel grade: 1.4307-1.4404-1.4301-1.4401
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 800/900, 1100/1400 N/mm2
  • Finish: bright and degreased



Roof Fixings

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-9
  • Stainless steel grade: 1.4307
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 700/800 N/mm2
  • Finish: bright without degreasing



Roof Hooks

Characteristics

  • Diameter (mm): 2.40, 2.65, 2.67
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4301-1.4016-1.4362-1.4462-1.4482
  • Packaging: coils, roseta coils
  • Mechanical properties: 800/900 N/mm2
  • Finish: bright without degreasing


Staples

Characteristics

  • Diameter (mm): 1.53
  • Diameter tolerance (mm): +0.010
  • Stainless steel grade: 1.4301
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 700/800 N/mm2
  • Finish: bright without degreasing



Metallic Wool

Characteristics

  • Diameter (mm): 3.10
  • Diameter tolerance (mm): h-9
  • Stainless steel grade: 1.4113
  • Packaging : trancane (1000 kg)
  • Mechanical properties: 950/1050 N/mm2
  • Finish: dull without degreasing  (soap)



Mesh

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): h-11
  • Stainless steel grade: 1.4301-1.4401-1.4845 1.4841-1.4362-1.4462-1.4482
  • Packaging: coils, trancane coils, roseta coils
  • Mechanical properties: 800/900, 950/1050, 1000/1100 N/mm2
  • Finish: bright with or without degreasing



Springs

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): EN 10270-3
  • Stainless steel grade: 1.4310-1.4401
  • Packaging: coils, trancane, roseta coil
  • Mechanical properties: EN 10270-3
  • Finish: coated dull, degreased bright



Tubular Rivets

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): +0/-0.020
  • Stainless steel grade: 1.4567
  • Packaging: coils, trancane, roseta coils
  • Mechanical properties: 49/55 Kg/mm2
  • Finish: coated dull



Weaving

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): +0.015, +0.020
  • Stainless steel grade: 1.4307-1.4306-1.4404
  • Packaging: coils, plastic reels, drums
  • Mechanical properties: 650/750 Kg/mm2
  • Finish: annealed bright



Screws

Characteristics

  • Diameter (mm): depending on the piece
  • Diameter tolerance (mm): -0.020
  • Stainless steel grade:
    - Hexagonal: 1.4307-1.4404
    - Rest: 1.4567
  • Packaging: coils, roseta coils, trancane
  • Mechanical properties:
    - Hexagonal: 650/800 N/mm2
    - Rest: annealed and salted
  • Finish: coated dull



Welding Wire, TIG

Characteristics

  • Diameter (mm): 1.00, 1.20, 1.60, 2.00, 2.40, 3.20
  • Diameter tolerance (mm): -0.020
  • Stainless steel grade: 1.4316-1.4430
  • Packaging: tubes, boxes
  • Mechanical properties: 110/160 N/mm2
  • Finish: bright and degreased


Important

Data subject to changes according to international standards and working practices.

Other grades on request: customer.service@acerinox.com
