Reinforcement Wire

Reinforcement Wire
ACERINOX is known worldwide as the one of the most competitive group in the world in stainless steel manufacturing. From its constitution, it has carried out a continuous program of investments, with development of own technological innovations that, in some cases, has constituted a true landmark in the technology of stainless steel.

High corrosion resistance, high ductility and high fire resistance.

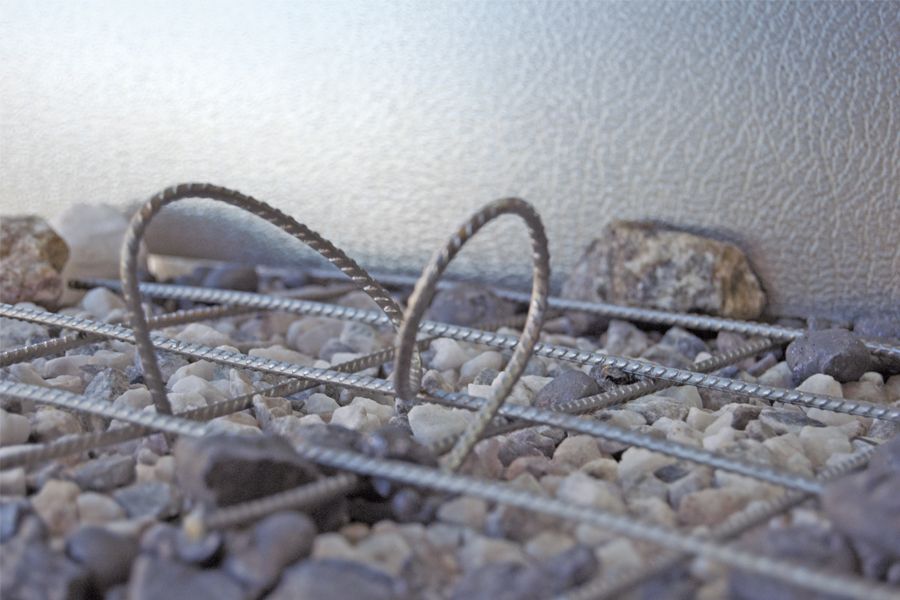

Reinforced Product

Stainless steel grades / packaging



EN

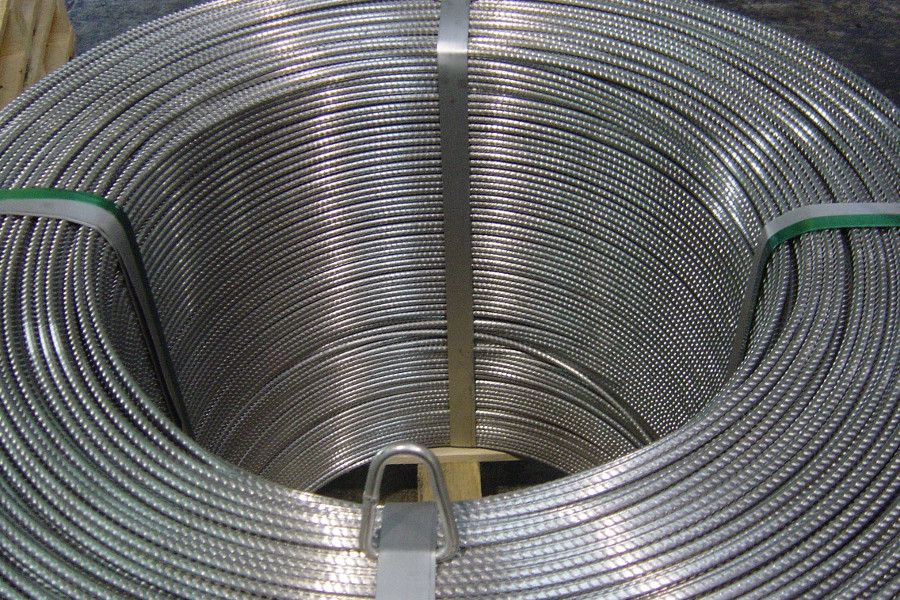

Packaging

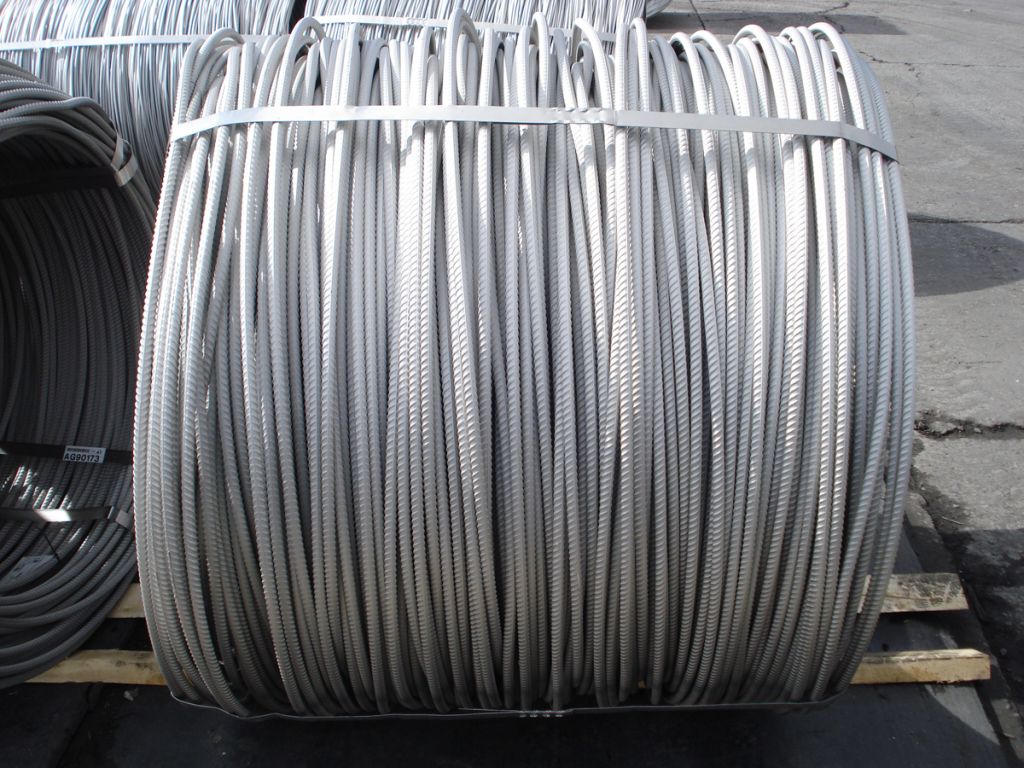

Reinforced bar

1.4462-1.4482
1.4301-1.4362

Trancane

Prestressed bar

1.4462-1.4482
1.4301-1.4362

Trancane



Dimensions

STRAIGHTNESS: 0.004*L (L= bar length)

Nominal Ø
(mm)

Max diference
(mm)

5 0.50
6 - 8 1.00
10 1.50

Lenght +25 mm

Specifications may vary depending on grade and finish. Other specifications or sizes on request.



Long / Short Product (LSP)

Stainless steel grades / packaging



EN

Packaging

Cold drawn short round bar on request palet



Dimensions

STRAIGHTNESS/OVAL-SHAPED: according to EN 10218-2. Class 1

Length (mm)

Straightness tolerance (mm)

<500 0.50
>500 ≤1000 2.00

Lengths >1000 mm, rolling test on inclined plane will be applied



Maximum Depth on Deffect / Roughness

Crack detector: NO

As it is a cold drawn material, surface deffects may persist

Finish

Ø ≤10
mm

Ø >10
mm

Roughness
Ra μm

All ≤0.07 ≤0.08 ≤1.50



Tolerances

Lenght according to EN 10218-2. Class 1

Length
(mm)

Length
tolerance.Class1

≤300

 +0.50 mm

>300 y ≤1000

 +1.00 mm

 >1000 y <2000

 +0.10%



Diameter

Tolerance according to ISO 286-2

Nominal diameter
(mm)

h8

h9

h10 h11
>5 to ≤6 0.018 0.030 0.048 0.075
>6 to ≤10 0.022 0.036 0.058 0.090
>10 to ≤14 0.027 0.043 0.070 0.110



Desviation values are "in minus" over the nominal size. I.e. 5 mm diameter, has a tolerance h9 type, which means +0, -0.030 mm or 4.970/5.00 mm.

Materials may also be manufactured according to EN 10218-2 using diameters intervals T1, T2, T3, T4 and T5 from the minimum permissible value of +0.025 mm in diameter ≥5.00 mm.

For ferritic stainless steel grades only ISO H9 tolerance can be guaranteed.



Important

Data subject to changes according to international standards and working practices.

Other grades on request: customer.service@acerinox.com
